Steel Profiles H Beam Abrator Shot Blasting Machine Price

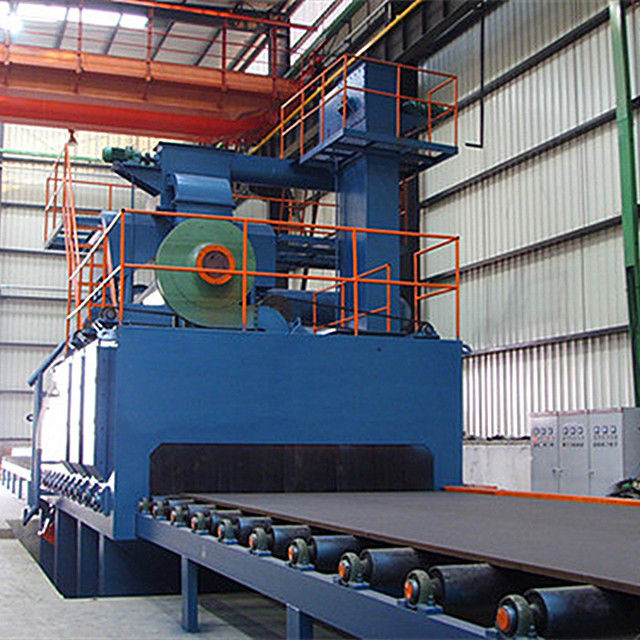

1. Q6910 Shot blasting machine :
Q69 roller pass shot blasting machine is a kind of multi-functional pretreatment equipment for cleaning plate, steel structure, profile, steel pipe and so on.In this way, after the steel is treated by shot blasting, the corrosion resistance of the products and metal components can be improved, the fatigue resistance of the steel plate can be improved, and its service life can be prolonged.
2. Roller conveyor
The roller table is divided into indoor conveying roller table and loading and unloading section conveying roller table (frequency control).
The high chromium wear - resistant sleeve is used to protect the roller table from projectile attack.
Clean up the room
The cleaning room is of large capacity chamber type box structure, and the wall inside the chamber is lined with special wear-resistant protective plate. The cleaning work is carried out in a closed capacity chamber
Hoist
The bucket elevator consists of cycloidal needle wheel reducer, upper and lower rollers, conveyor belt, hopper, closed barrel, check device and tensioning device.
Separator
It is mainly composed of reduction gear, screw conveyor and separation device.Secondary separation function (pure pill, mixed pill and sand mixture) BE curtain structure.
Shot blasting machine
The high efficiency suspension centrifugal shot blasting device is adopted, which is mainly composed of rotating mechanism, impeller, housing, directional sleeve, shot separating wheel and guard plate.
Electric control
The electrical control system USES the conventional control to realize the control of the whole machine, USES the domestic production of high quality electrical components, has the advantages of high reliability and easy maintenance, etc., the main circuit by miniature circuit breaker and thermal relay to realize the short circuit of each motor, the lack of phase, overload protection.And with an emergency stop switch, convenient emergency shutdown, prevent the expansion of the accident.
Dust removal system
It is equipped with a pulse backblowing cartridge dust collector, which is composed of shell, filter barrel, pulse control instrument, fan and pipe, etc.Dust is discharged in the upper air after being treated by a dust collector, with the emission concentration ≤120mg/m3.
3.Q6910 Shot blasting machine Product Parameters
| 1 |
Max. Workpiece size (L*W*H) |
10000*2000*1000 mm |
| 2 |
Chamber open size (W*H) |
2200*1200 mm |
| 3 |
Max. Workpiece weight |
5T |
| 4 |
Finish level |
Can achieve Sa2 .5 (GB8923-88) |
| 5 |
Processing speed |
0.5-1.5 m/min (Frequency conversion variable speed) |
| 6 |
Surface roughness |
30~75 μ (Depend on abrasive size) |
| 7 |
Suggest abrasive
(User prepare)
|
Steel cut wire, casting alloy shot: Φ0.5~1.5, abrasive supply valve max. flow: 500 kg/min. Abrasive loss: 0.15-0.25 kg/h/pcs. First loading: ~4000 kg. |
| 8 |
Electric power supply |
380V, 3P, 50HZ or customized |
| 9 |
Pit requirement |
Waterproof |
|
1
|
Roller conveyor system
|
Motor power |
3*2 KW |
| Roller diameter |
108 mm |
| Loading capacity |
1000 kg/m |
| Roller separation distance |
800 mm |
| Transporting speed |
0.5-6 m/min (frequency control) |
|
2
|
Shot blasting system
|
Blasting chamber |
Material of protective area: SPMn13 |
| Material of the chamber: Q235 |
| Auxiliary chamber |
With rubber curtains for sealing the abrasive flying out of the chamber |
| Blasting wheel |
Quantity: 10 units |
| Blade structure: Straight line |
| Blasting capacity: 10*180 kg/min |
| Power: 10*11 kw |
| Speed: 76 m/s |
|
3
|
Abrasive reclaim system
|
Screw conveyor
|
Conveying capacity: 120 T/H
Screw diameter: 360 mm
Power: 2*7.5 KW
Quantity: 2 sets
|
| Bucket elevator |
Lifting capacity: 120 T/H
Lifting speed: 1.21 m/s
Power: 11 kw
Quantity: 1 set
|
| Separator |
Quantity of separation: 120 T/H
Air speed: 4-5 m/s
Power: 7.5 kw
Waste content: ≤1% (Full curtain and flow curtain type multistage winnowing)
|
|
4
|
Dust removal system
|
Filtering material |
Polyester coated fitter cartridge |
| Quantity |
1 set |
| Fan power |
2*15 kw |
| Total pressure |
2000 pa |
| Ventilation volume |
26000 m3/h |
| Cartridge quantity |
24 pcs-(φ360x1000 mm) |
| Filtering area |
360 m2 |
| Dust falling way |
Automatic back pulse |
| Filtering level |
Fireproofing, Prevent spontaneous combustion |
| Filtering accuracy |
1 μm |
| Dust emission level |
≤80 mg/m3 |
| 5 |
Electric control system |
PLC, Low voltage electrical components, button |
| 6 |
Noise |
≤85 dB (Measure outside workshop) |
| 7 |
Others |
Air pressure: 0.5-0.7 Mpa; First loading of steel shot: 4000 kgs (User prepare) |
| 8 |
Total electric power |
About 190.5 kw |
Trade Information:
MOQ: 1set.
Settlement Currency: USD, RMB, EUR.
Trade mode: FOB (FCA), CIP, CFR, CIF, DDU, DDP, Turnkey.
Payment term: 30% deposit by T/T, the balance paid before delivery or L/C at sight.
Delivery time: Within 15-40 days according to different type machine.
Our Serives:
1. Installation and commissioning issue: We will send one technician to guidance with machine installation and commissioning, customer shall pay for his return tickets, hotel and diet. Customer shall arrange 3-4 skilled workers and prepare various insallation machinery and tools.
2. Warranty time:12 months from date of commissioning completion, but no more than 18 months from date of delivery.
3. Supply full English documents: including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.
4. Exported experience : Many countries and area, such as The USA, Germany, France, Russia, United Kingdom, Australia, Malaysia, UAE, Egypt, Mexico, Brasil, etc.
5. Our shot blasting spare parts are high quality with Cr20S High Chrome, ZGMn13, etc.
